Overview

This guide details how to apply a deferral to an open defect through the Tech Log Application. Any deferral applied here will also show in the Web Dashboard (see TL-UGD-DEF-002).

Prerequisites

A deferral can be applied only to defects in the “Non-Deferred” (red) status. Defects that were deferred at the same time they were raised, or those that have been resolved, are ineligible for deferral.

At present, any user with access to the aircraft via Tech Log Application will be able to apply a deferral in this manner. No enhanced permissions are required, however, a signature is mandatory to complete the process.

Applying a Deferral

Starting the Add Deferral Flow

1. From the Maintenance Module, ensure that the Defects tab is selected
2. From the three-dot menu on the defect you wish to defer,
3. Select Add deferral

Select a Deferral Option

Flow Variant: MEL deferral, with a Digital MEL

Selecting Add deferral will start the Defer Defect flow.

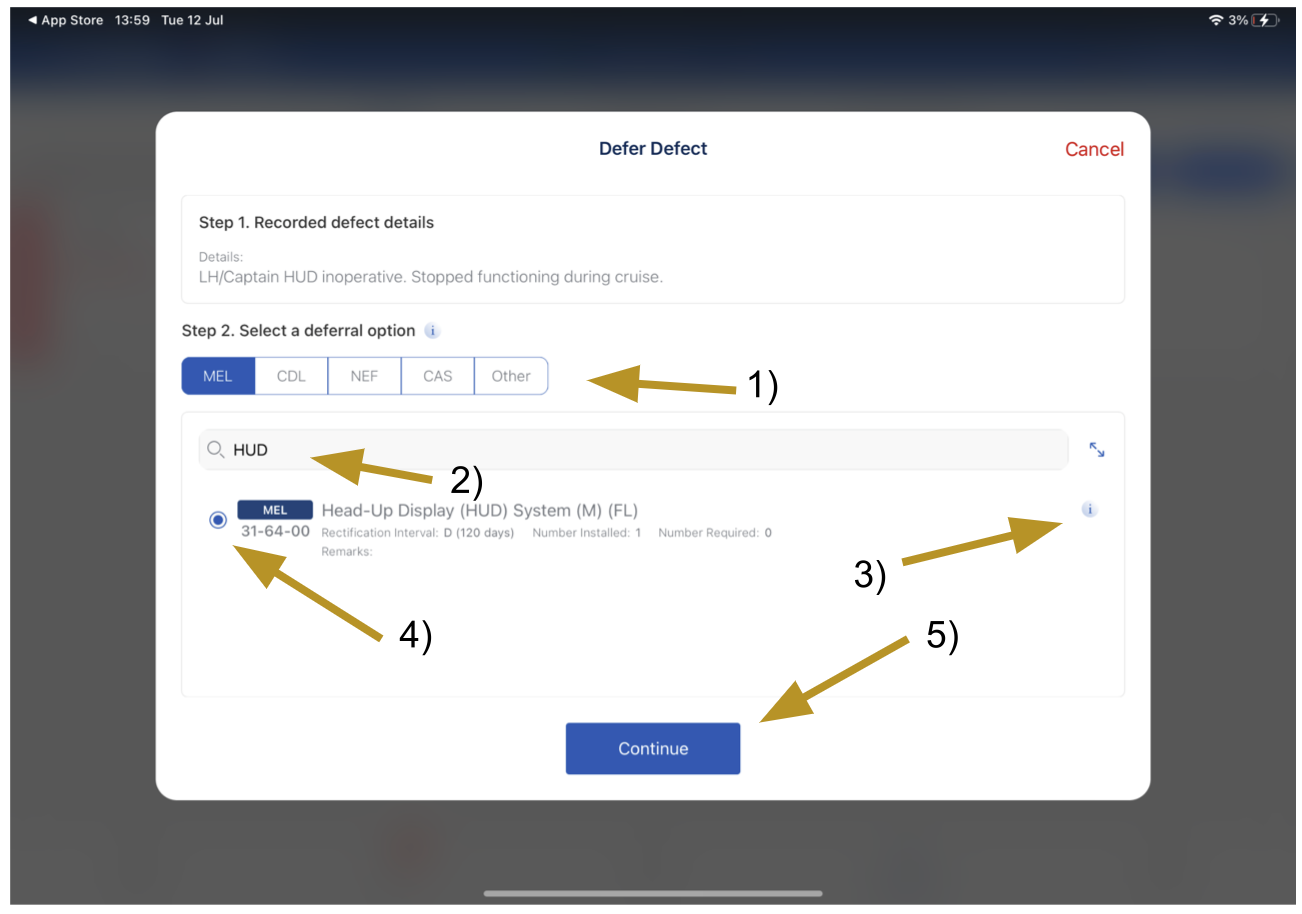

1. Select the deferral option you wish to use. Note that your operational procedures many limit which deferral options you are permitted to use:

• MEL: Minimum Equipment List
• CDL: Configuration Deviation List
• NEF: Non-Essential Equipment and Furnishings
• CAS: Computerised Assessment System

• Other

If you select MEL and your aircraft is configured with a Digital MEL, you will be presented with a searchable list of MEL items applicable to the aircraft. In all other cases, you will be required to manually enter details of the deferral. This example assumes the presence of a Digital MEL, please see the next flow variant for other deferrals.

1. (Optional) Search for keywords or references relating to the MEL item you wish to locate
2. (Optional) Use the (i) button to view additional information about the MEL item
3. Select the radio button next to the item you wish to defer against
4. Select Continue

If you are unable to locate the MEL item you wish to defer against, please confirm that you have typed your search query correctly. Your operational procedures may allow you to manually enter the deferral under the Other category at this point if you are still unable to locate the correct item.

Flow Variant: Deferral without a Digital MEL, or non-MEL deferral

Selecting CDL, CAS, Other, or MEL (when no Digital MEL is available for the aircraft) will show this same set of fields. Selecting NEF will only show the Reference field, and not ATA Chapter, ATA Section or Rectification Category.

The Rectification Category can be one of:

• Advisory Only: This defect will never expire
• A: Custom limits, defined in the next step
• B: 3 day validity
• C: 10 day validity
• D: 120 day validity

These deferral options can be used by entering the required information into the fields and selecting Continue.

Limits and Limitations

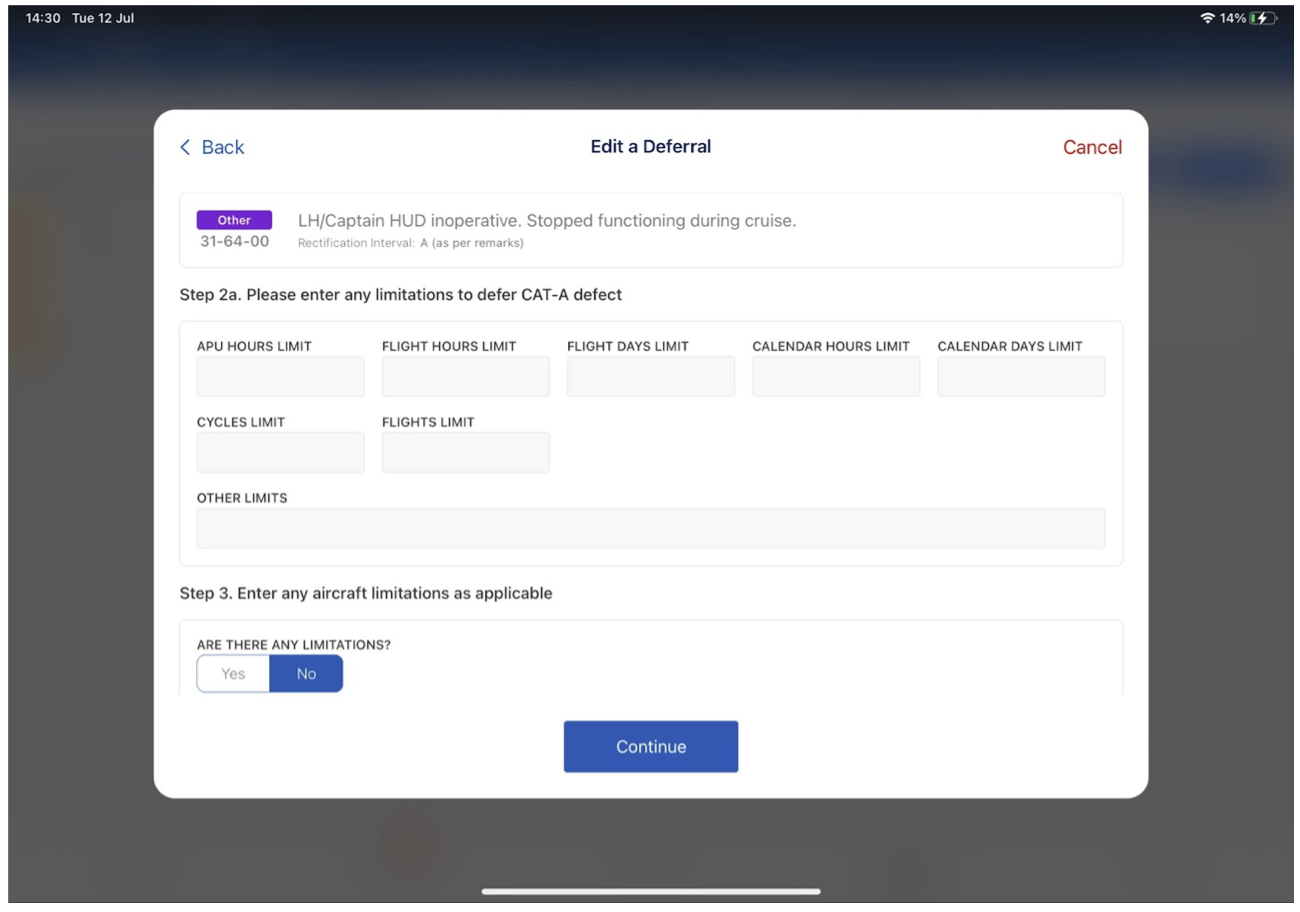

Variant: Category A Deferral

If you selected the Rectification Category of A in the previous step, you will be required to confirm any airworthiness limits. If using a Digital MEL, these will have been pre-filled for you, but many require adjusting. Please enter values only in the relevant fields labelled as Step 2a and leave unnecessary fields blank.

Any value entered in a box other than Other Limits will be tracked against the aircraft, turning the aircraft Unserviceable once they expire.

Text entered into the Other Limits box will be displayed prominently on the Application’s Dashboard view while the defect remains unresolved. It is the responsibility of the crew to comply with any limit entered in this manner, and they will not automatically render the aircraft unserviceable at any point.

After completing Step 2a, proceed to the next step in line with Variant: All Other Categories, below.

Variant: All other Categories

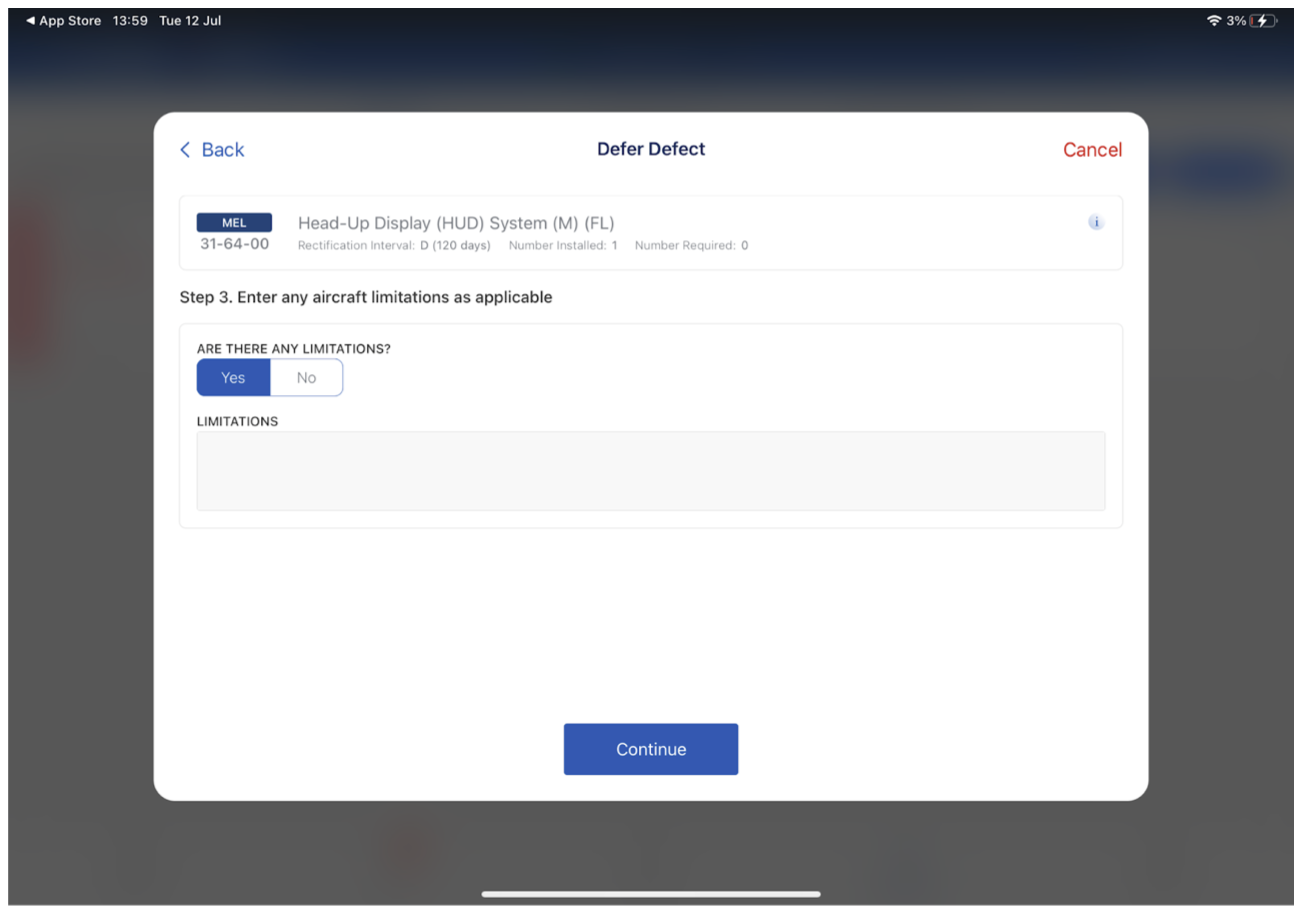

All other Rectification Options and Rectification Categories, except NEF, will request confirmation of any limitations imposed on the aircraft by this defect. In contrast to Other Limits, described above, these limitations must not influence the serviceability status of the aircraft, only impose some operational limit on the aircraft. In order to enter a limit, simply answer Are there any limitations? with Yes and enter the limitations in the text box before selecting Continue. If there are no limitations, ensure that No is selected, and then select Continue.

Any text entered into this box will be displayed in the Limitations tile on the Application’s Dashboard view.

Deferral Action

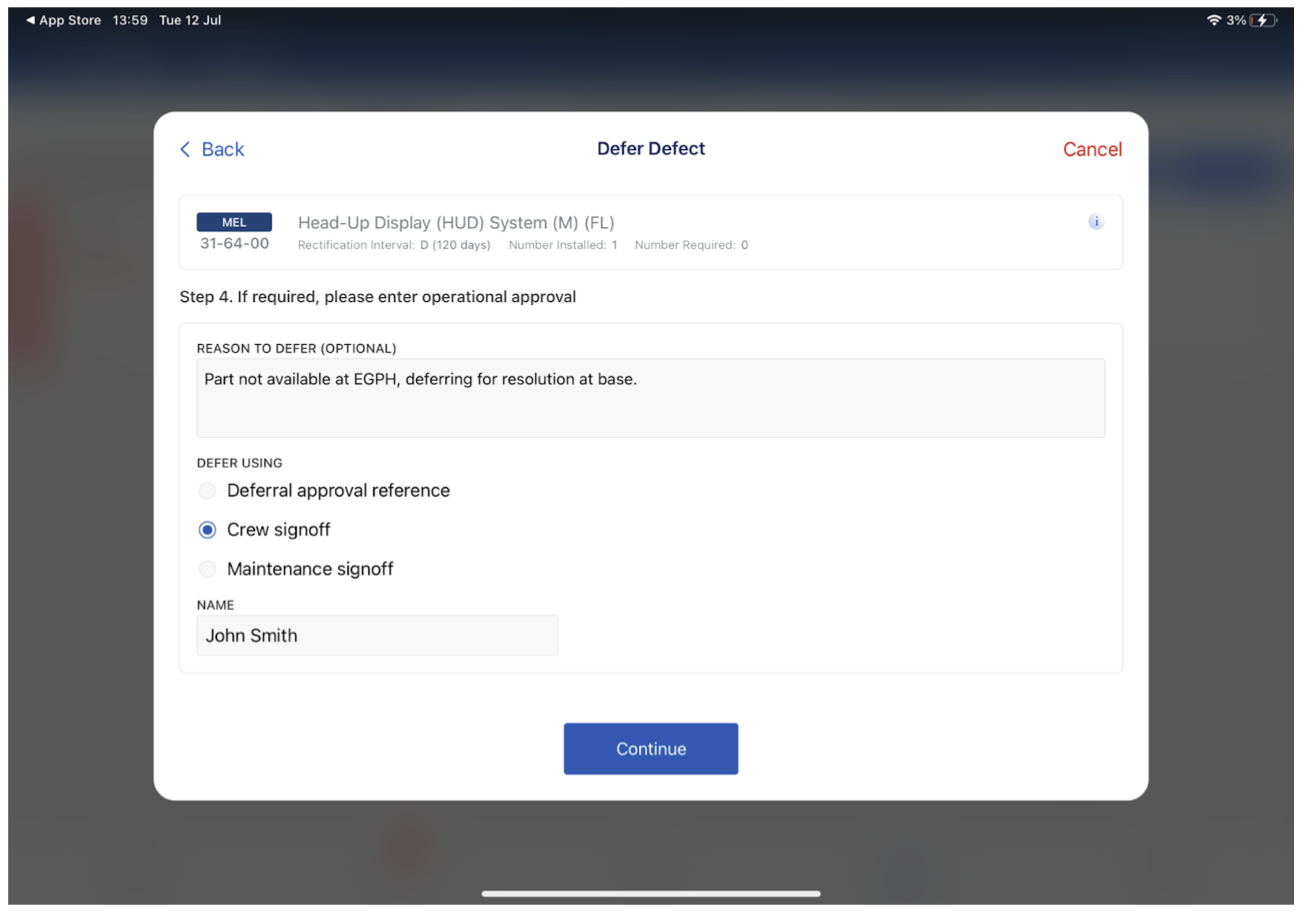

This step requires information about the deferral. The Reason to Defer is an optional field in the system (please check with your operational procedures), but a deferral authorisation is required (“Defer Using”). Please select one of the following options:

• Deferral approval number: when provided deferral authorisation by e.g. a Maintenance Control Centre, select this option. You will be required to select who is actioning the deferral, and enter the approval reference provided.

• Crew Signoff can be used when crew are authorised to perform deferrals, where the crew member must be selected, or a new crew member added to the system. Tapping on the Name field will display a list of available crew, with the option to add a new crew member.

• Maintenance Signoff is used when the deferral is performed by an engineer. As with crew, tapping on the Name field will display a list of available people, with the option to add a new person. A Part 145 number and Engineer Licence / Authorisation Number can be provided, as required by your operational procedures.

Required Procedures (Digital MEL Only)

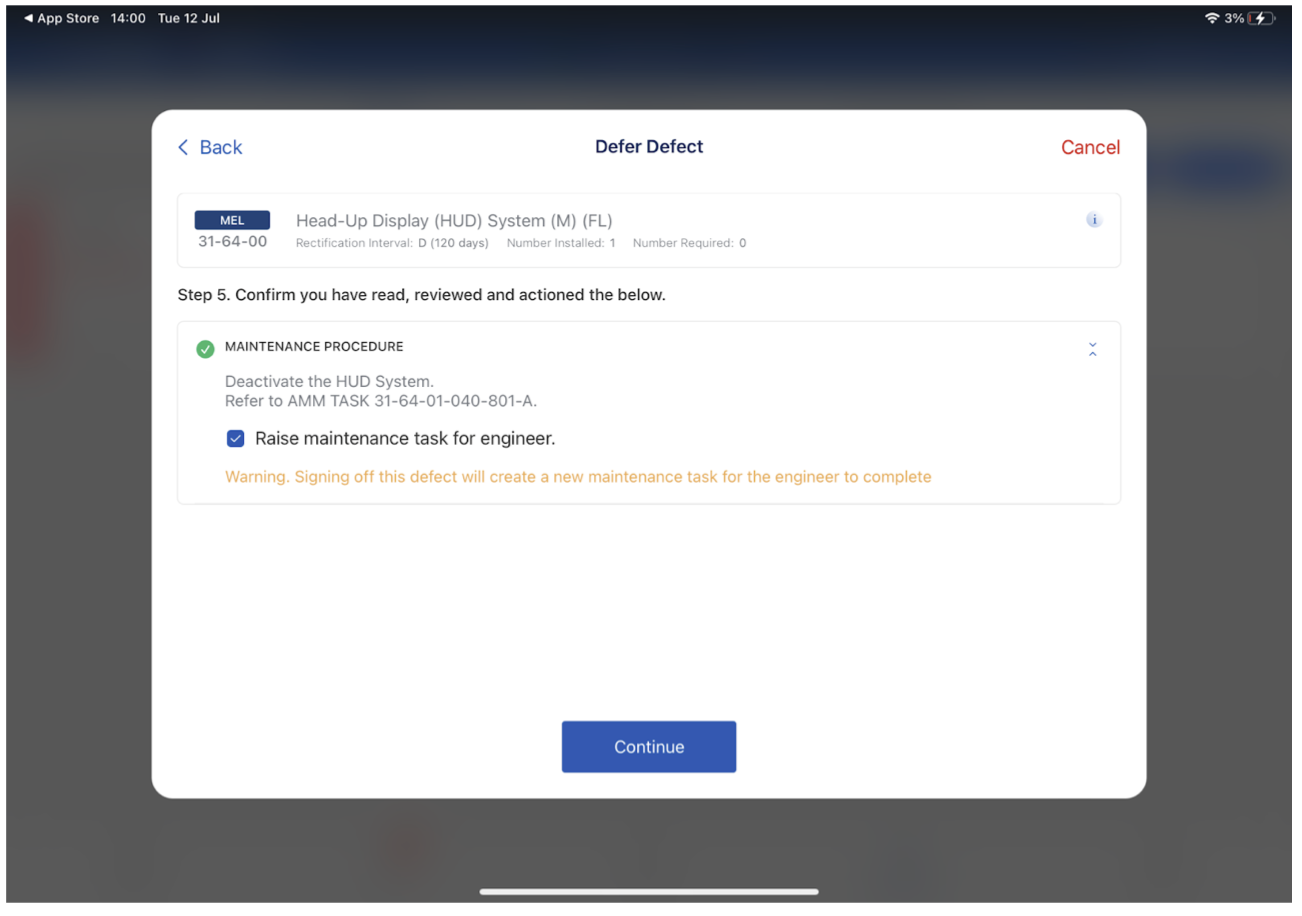

If deferring using an item selected from a Digital MEL, any required procedures will be shown as the next step. These include:

• Operational Procedures
• Placarding Procedures
• Maintenance Procedures

Operational and Placarding Procedures require only to be acknowledged. Any maintenance procedure will automatically be raised against the aircraft as a Scheduled Maintenance Task when the deferral process is completed. As a result, the aircraft will display as Unserviceable until the Scheduled Maintenance Task is completed.

You will be able to select Continue only once each procedure or warning has been acknowledged.

Completing the Deferral

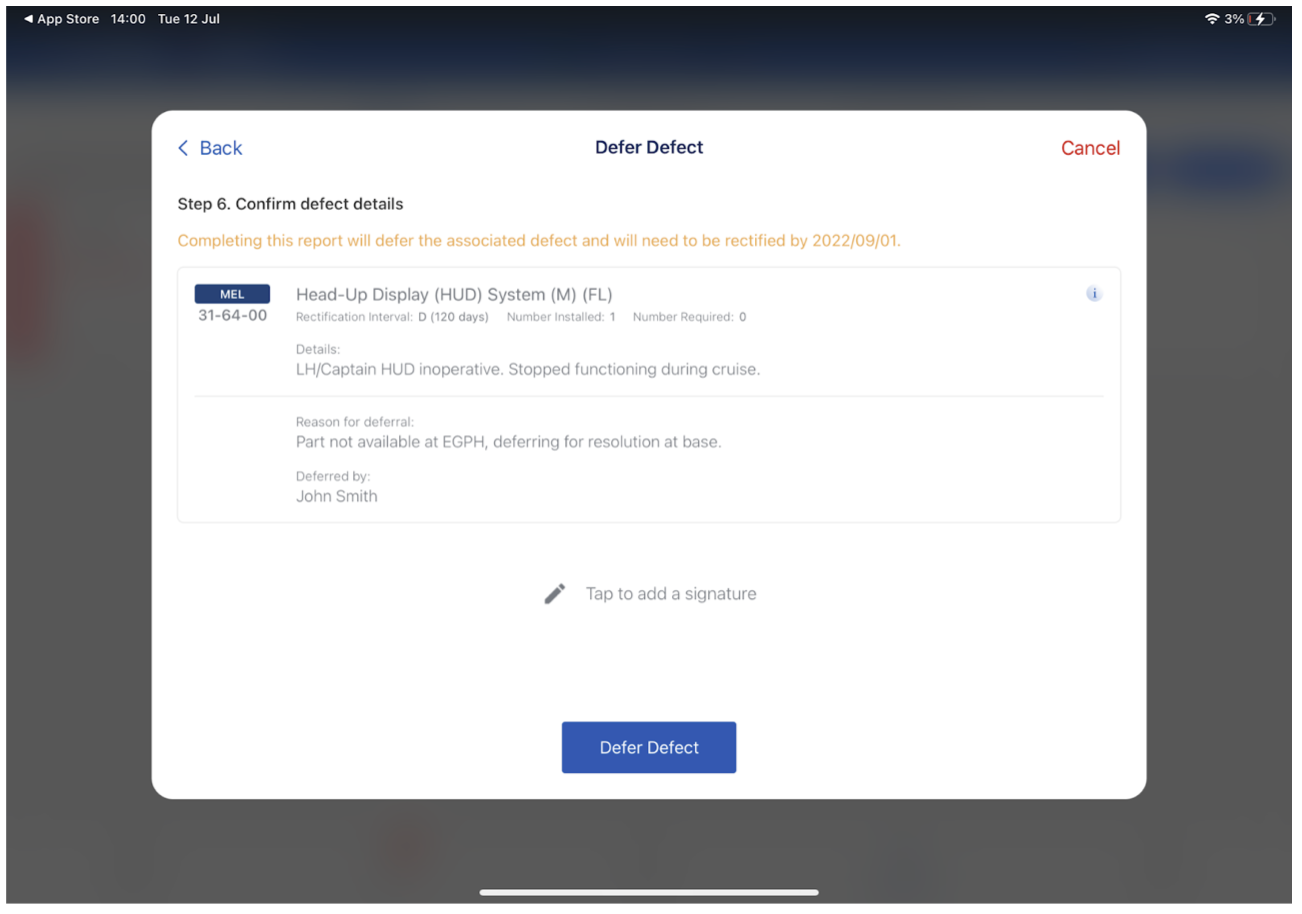

The final step to defer a defect is to acknowledge the summary screen and provide a signature. Either selecting Tap to add signature or Defer Defect will present the signature modal for signing. Once complete, the defect will be successfully deferred.

Should any changes be required, selecting < Back allows you to return to previous screens in the deferral workflow.

Note that this final step is labelled as Step 6 here, however, depending on the number of previous steps that were not required, this number will likely be different.

Viewing a Deferral

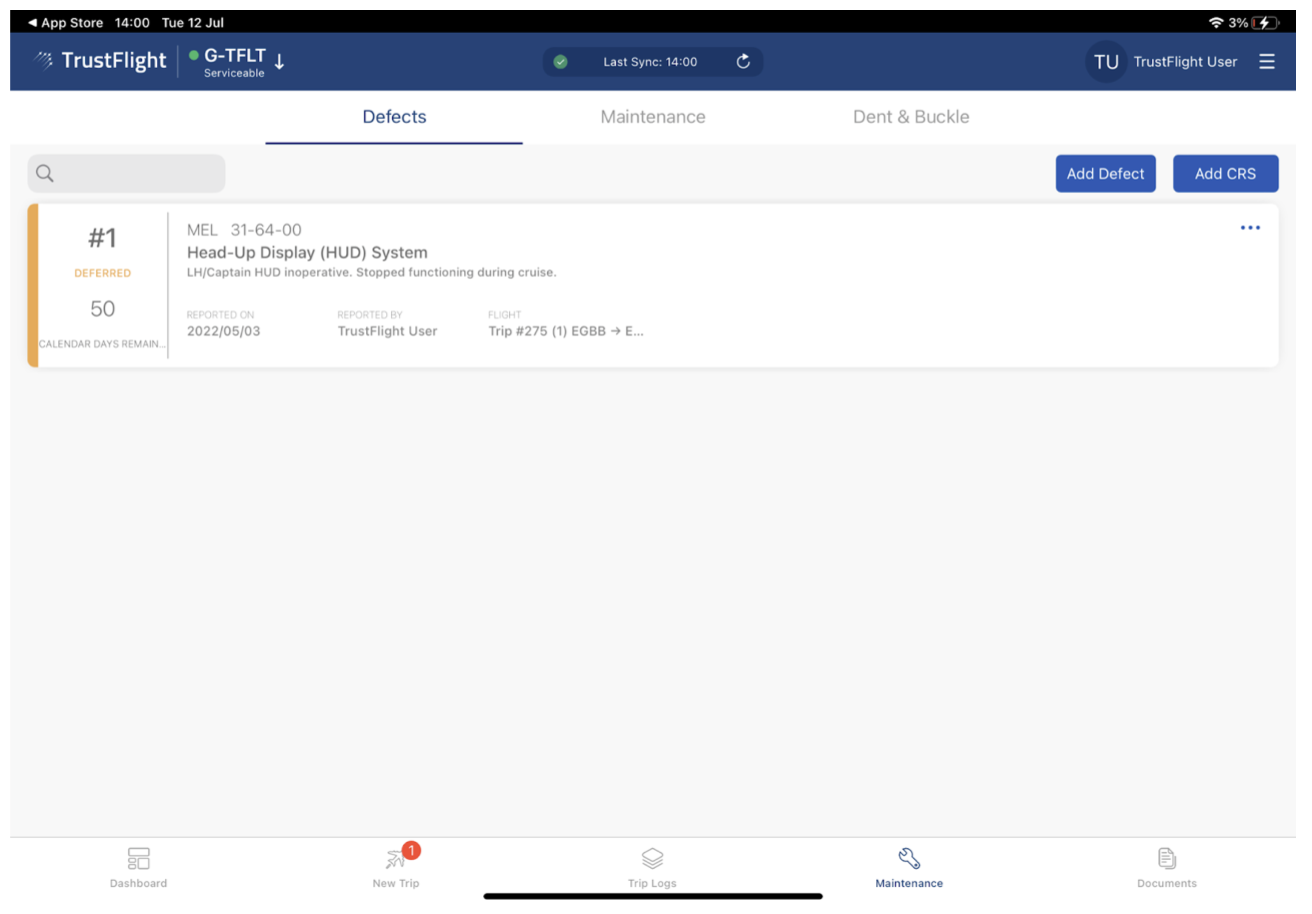

Deferral information can be viewed by tapping on the defect row.

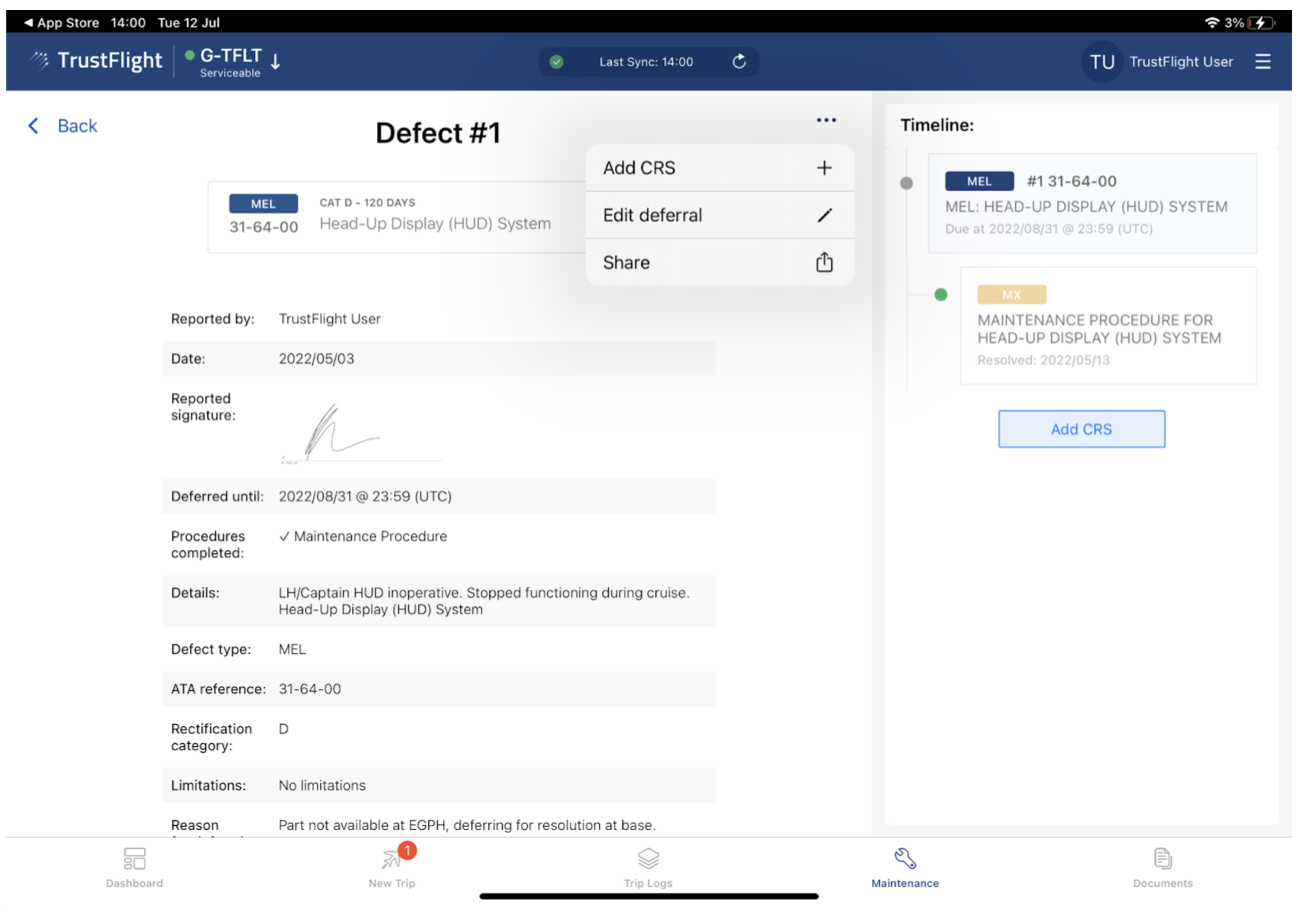

A summary screen is then displayed, containing information from the deferral. The screen will be scrollable if there is too much information to show, and will have separate reporting and deferral signatures.

Editing a Deferral

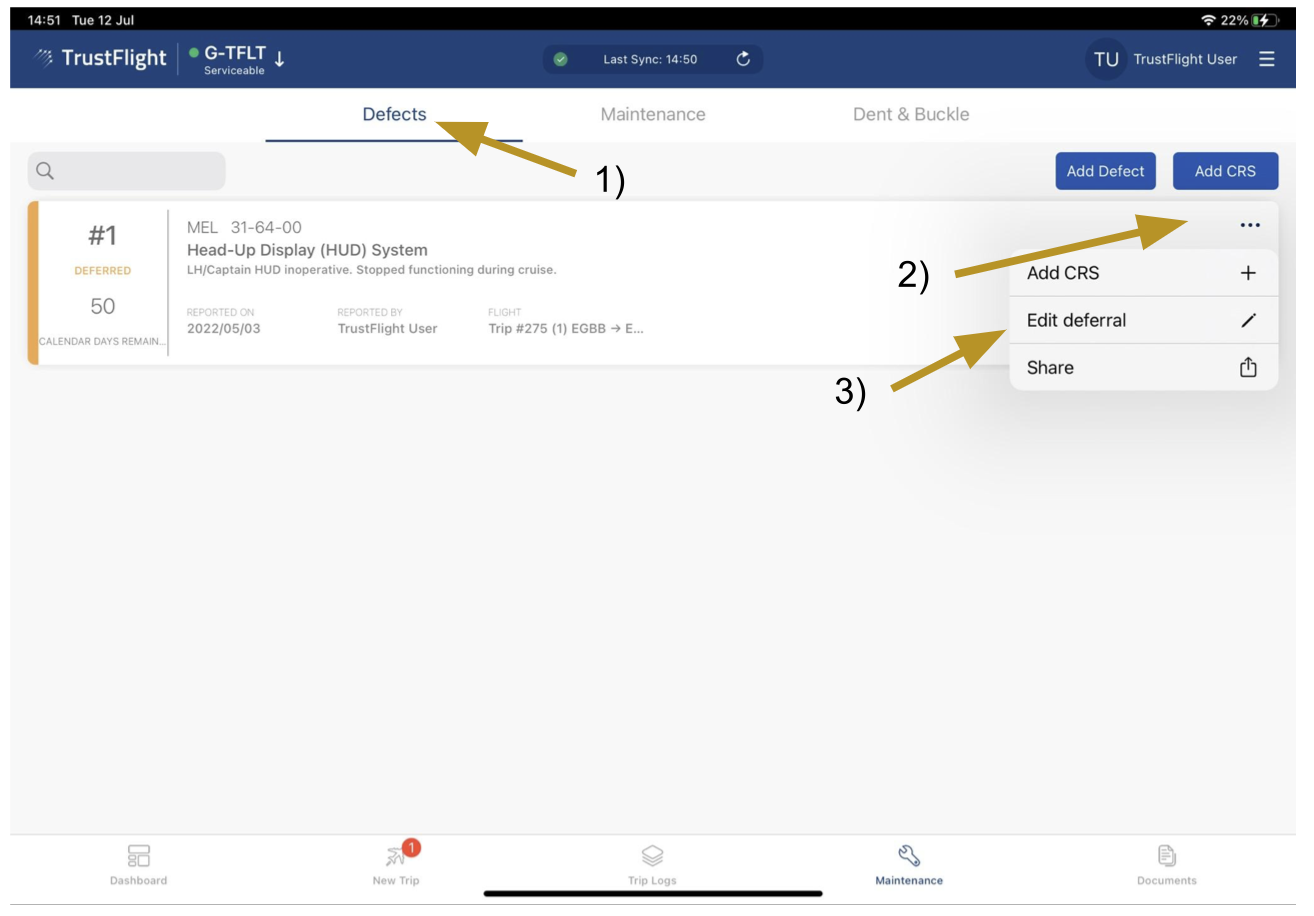

If the deferral was applied using the process described in this guide, and the defect has not been resolved, a deferral can be edited by using the three-dot menu to re-start the deferral flow:

1. From the Maintenance Module, ensure that the Defects tab is selected
2. From the three-dot menu on the defect you wish to defer,
3. Select Edit deferral

Please use the instructions from Select a Deferral Option above to make changes to the deferral. A new signature will be required prior to saving any changes.

Removing a Deferral

Deferrals cannot be removed using the Tech Log Application. To remove a deferral applied using the procedure defined in this guide, the Web Dashboard must be used. Please refer to TL-UGD-DEF-002 for instructions.

Editing Defect Details after Applying a Deferral

Once a defect has had a deferral applied using the procedure defined in this guide, the original defect cannot be edited. This ensures data integrity as the deferral would have been based on the information present at the time.

Should an issue be discovered after the deferral has been added, the operations team must be informed and the defect can be corrected using the Web Dashboard. Please refer to TL-UGD-DEF-002 for instructions.

Related Documents

• TL-UGD-DEF-002 Applying a Deferral to a Defect (Web Dashboard)
