As a Safety Manager moves through the phases of a safety case it may be necessary to look back at another phase in order to gather additional information. As an example a Safety Manager is working within the classify phase yet they want to check some details from within the capture phase.
The side by side view is a configuration option but it allows you to view phases in a side by side view.
1. Navigate to a submitted safety case

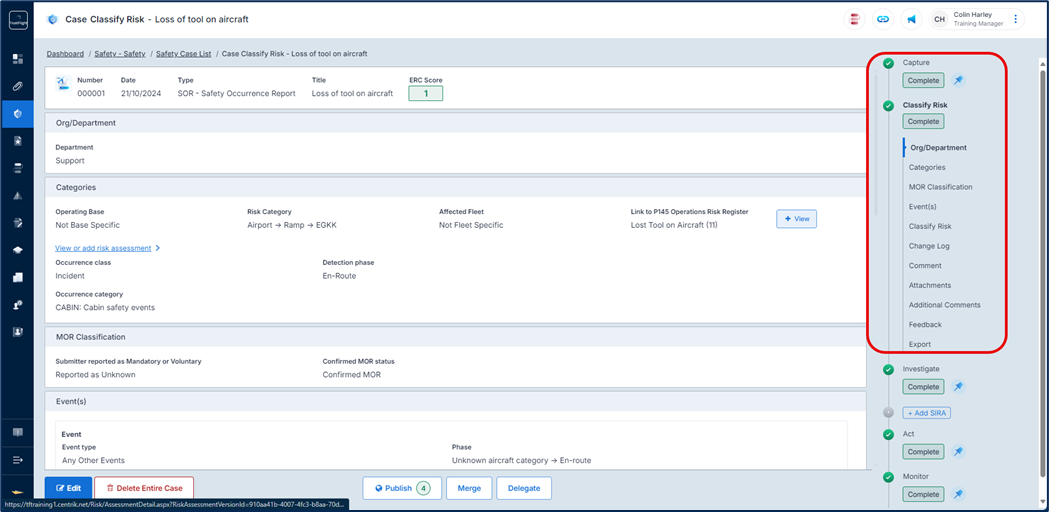

2. Click on a phase (in the below example the Capture phase has been completed and the Safety Manager is in the Classify phase)
To the side of each non active phase (the phase that you are not currently in) there is a ‘Pin’ icon.

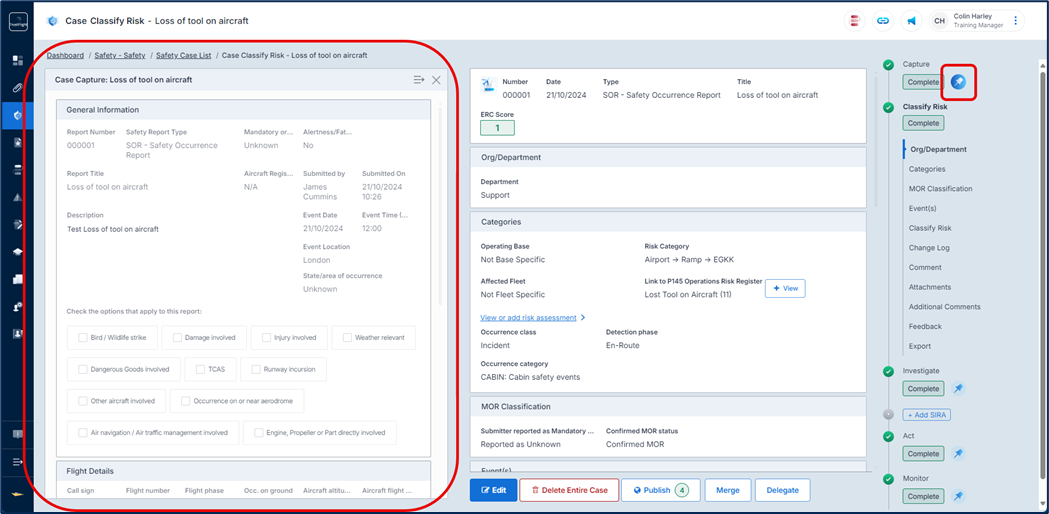

3. Click on one of the pin icons (in the below example the Capture phase pin was selected)
The pin for the selected phase is highlighted and the phase selected is displayed as a side by side view. You can scroll this page as is required.
To return to the phase that you were working in simply select the highlighted / previously selected pin.
Pinned pages are displayed in the order of the case, if you are in the Classify phase and the Capture phase is selected / pinned, then the Capture phase appears on the left of the screen.

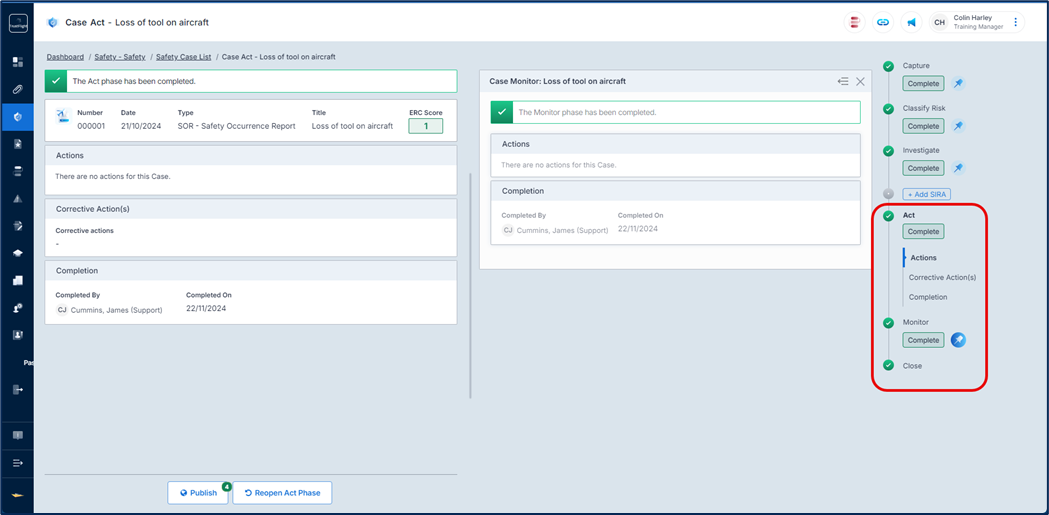

Likewise if you are working in the Act phase (as per the below example) and the Monitor phase is selected / pinned, this will appear in the righthand side by side panel.
