UAV equipment is created in a similar way as any other equipment within Centrik. There is however a small difference, the equipment module is linked closely with the tasking module so in the equipment creation this needs to be reflected.
When creating a Class of equipment there are two columns available for selection.
Task – This equipment can be used for tasking
Mountable – This equipment can be mounted or connected to another piece of equipment allowing pieces of equipment to be used together and its use recorded.

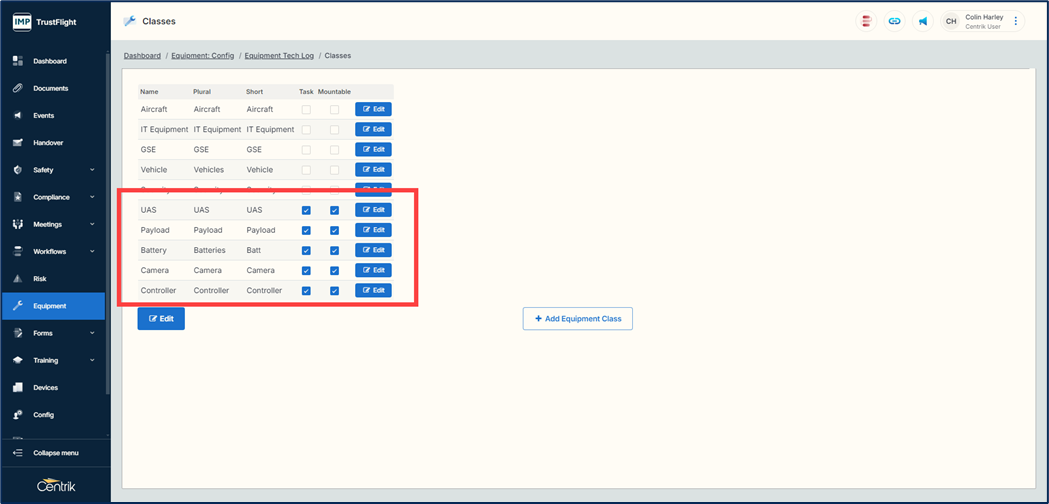

It’s important that within the Class setup that the checkboxes for Task and Mountable are selected, one or both boxes need to be checked to use this equipment within the tasking module.
1. Click the ‘Edit’ button to put the page in an editable state
2. Select the required checkbox, or checkboxes
3. Click on the ‘Save’ button

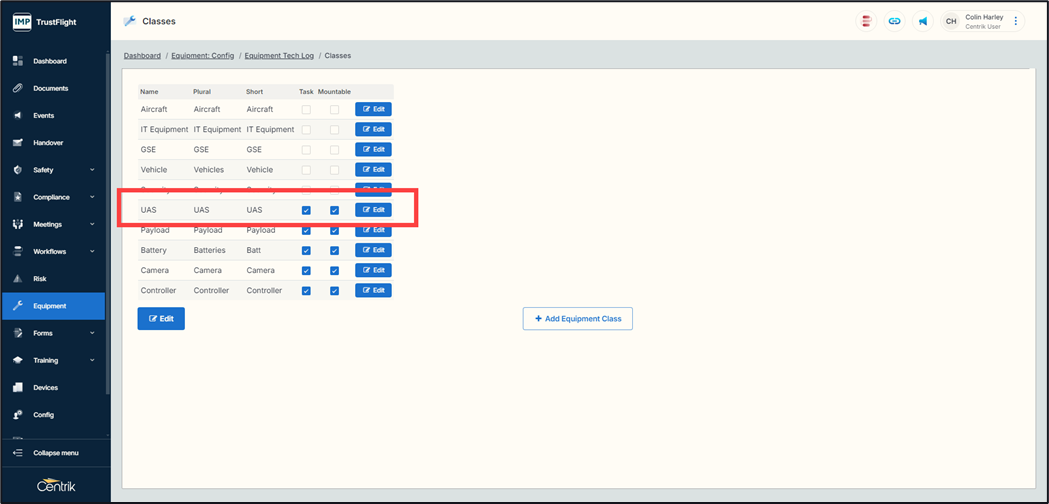

Once a class has been created you can edit its properties through the Edit button.

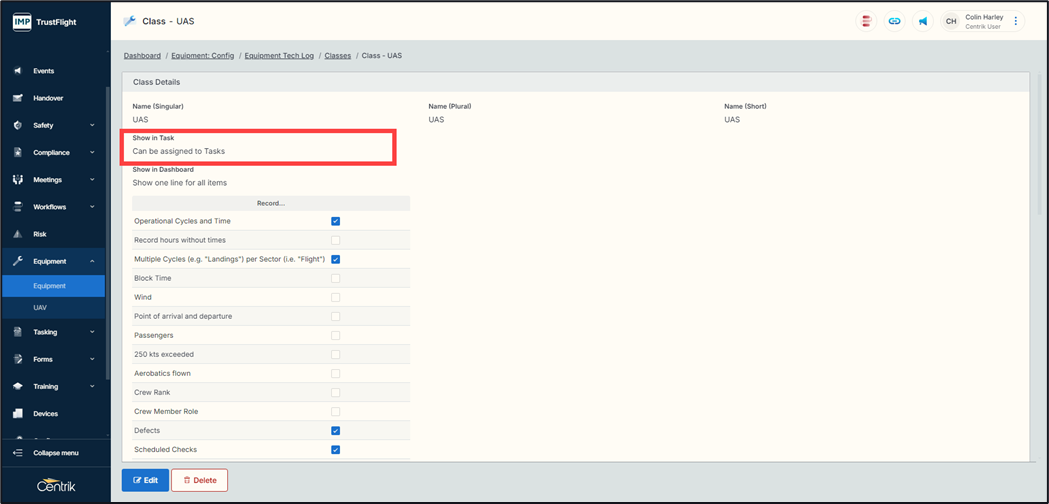

1. Click on the edit button for the equipment class
2. Ensure that under the area ‘Show in Task’ that the equipment can be assigned to tasks
3. As with other classes of equipment click on the checkboxes that you wish to record against this class, for example, multiple landings, defects, schedule checks
4. Click on a checkbox or the ‘Edit’ button to put the page into edit mode

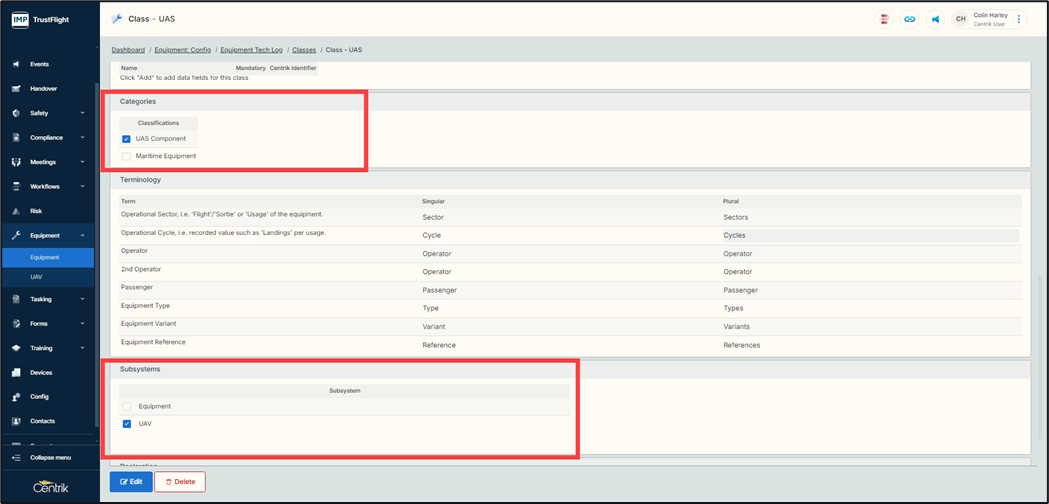

5. Under the Categories section tick, the checkbox for ‘UAS Component’
6. Under the Subsystems section select the required subsystem
7. Click on the ‘Save’ button
If you want this equipment class to be recorded/logged for each pilot, then the following selection option within the class area needs to be selected.
