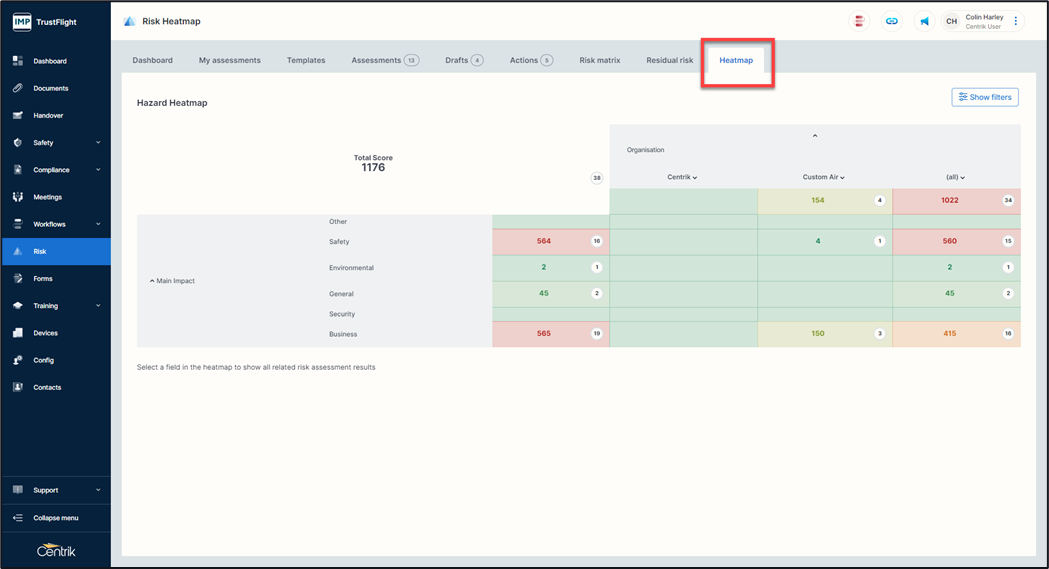

The ability to view the organisational risk via a heatmap view, broken down into key Main impact areas, you can see where your organisational risk exists.

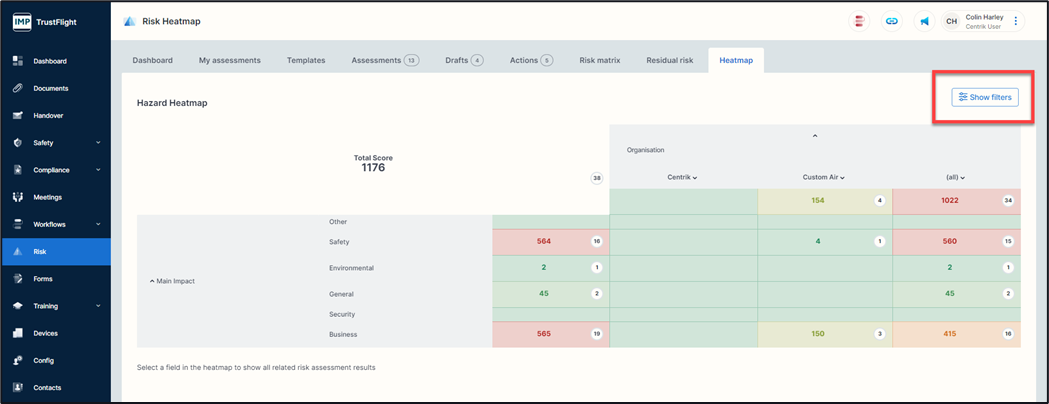

Filtering options exist on this page, clicking on the ‘Show filters’ button will display the available options.

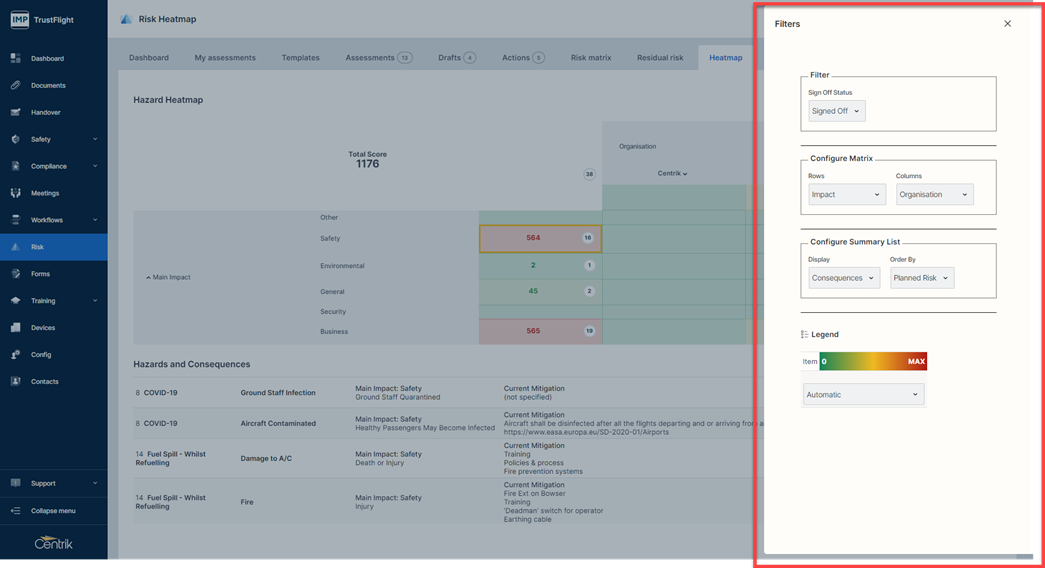

You can filter between.
Signed-off status – options of All or Signed-off
Configure Matrix – Change the Rows and the Column view
Configure Summary List – Alter the display and ordering
Legend - Colours can be filtered or altered as well by choosing the Automatic option or a Standard view

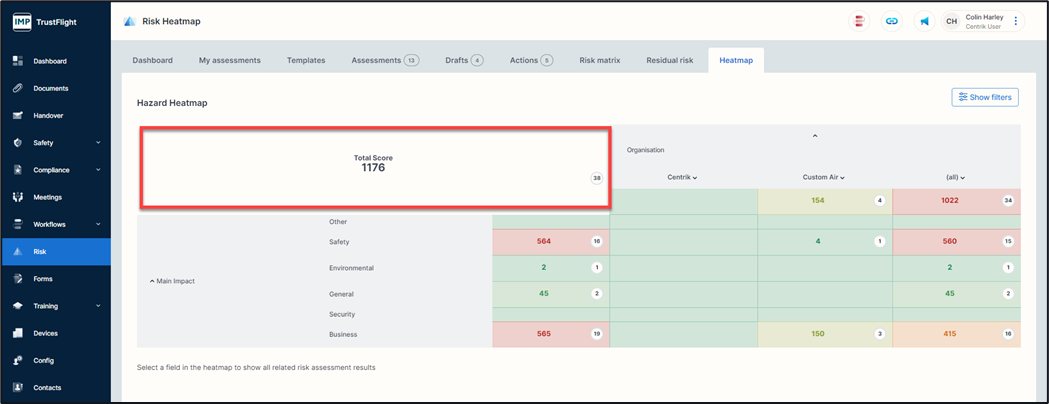

From the landing page of the heatmap the total score indicates the cumulative score of all consequences added together, whilst the number indicator denotes the total number of consequences created.

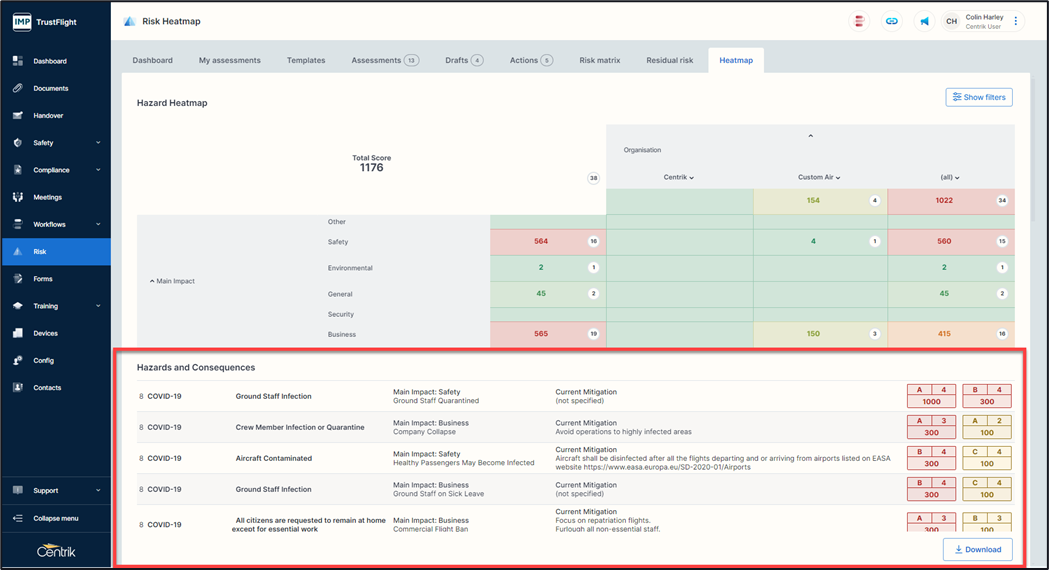

Clicking on this area displays a list of all hazards and consequences displaying each consequence, the main impact area that it relates to, any mitigations in place along with the current and planned score for that consequence.

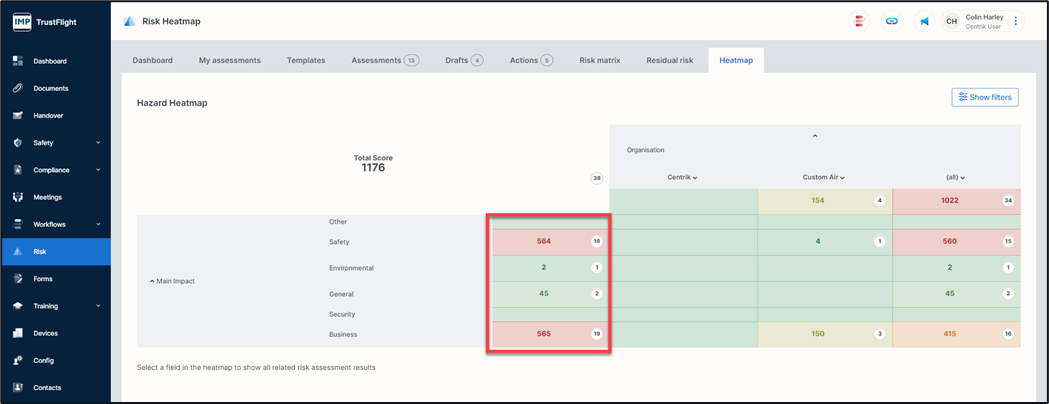

Clicking on a main impact area will display that area in further detail.

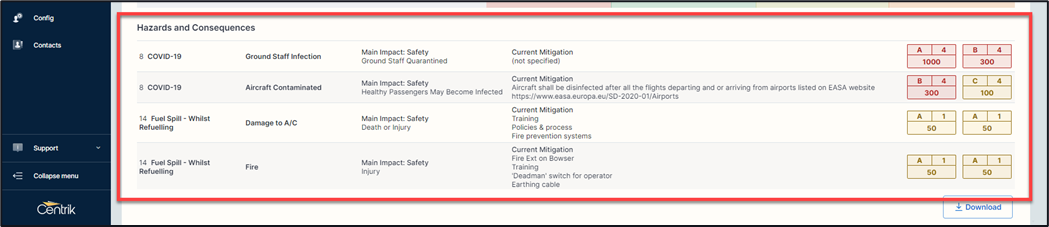

Expanded details of the Safety main impact area:
