The modules of Safety, Compliance and Risk are linked within Centrik.
The Safety module captures reported incidents that occur within an organisation, allows for classification, investigation, and publication of safety cases.
The Compliance module allows organisations to perform checks or audits to ensure legislation, processes and or procedures are followed to limit any safety incidents via the creation of raising and managing findings.
The Risk module is an area where you are able to identify, assess and place a classification to risks through the creation of risk assessments, the identification of risks is a pro-active way of managing safety trying to mitigate hazards becoming a safety occurrence / incident. Centrik also allows for the reactive management of safety in the creation of risk assessments in direct relation to a safety case, and or compliance findings.
The Risk module (like other modules) can have a singular page for risk, or multiple tabs (sub-systems) enabled depending on the organisation.

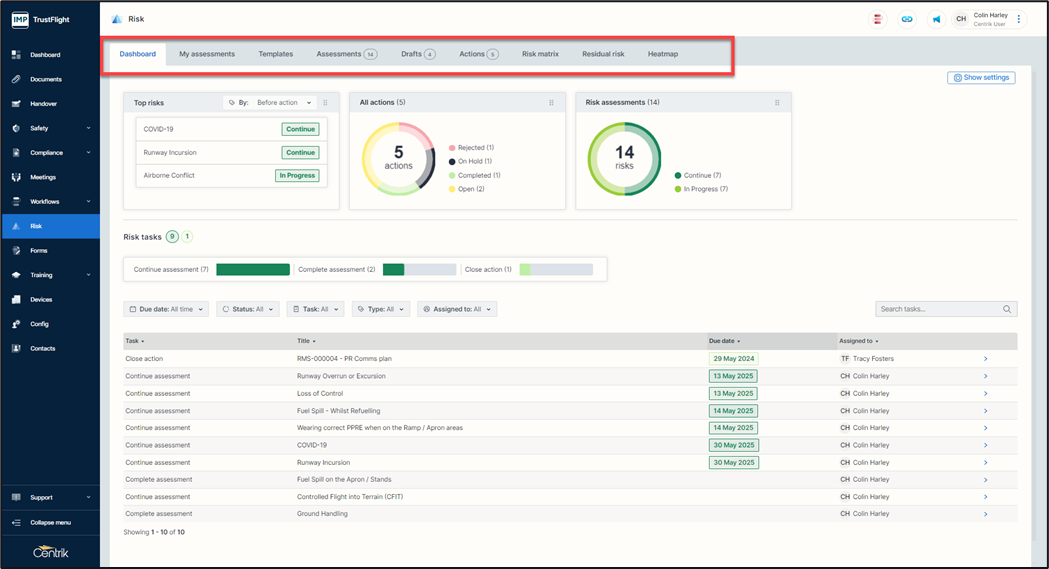

Clicking on the Risk icon directs you to the risk landing page, there are different tabs used to segregate different areas of the module.
Dashboard tab:
Provides an overview of the Risk module including any tasks that you need to complete or tasks that you have assigned.
The dashboard like other dashboard modules can be rearranged / filtered to suit the user. This is achieved through the ‘Show settings’ button. Any tasks that you have been assigned will be shown via a graphical overview and a task list at the bottom of the screen

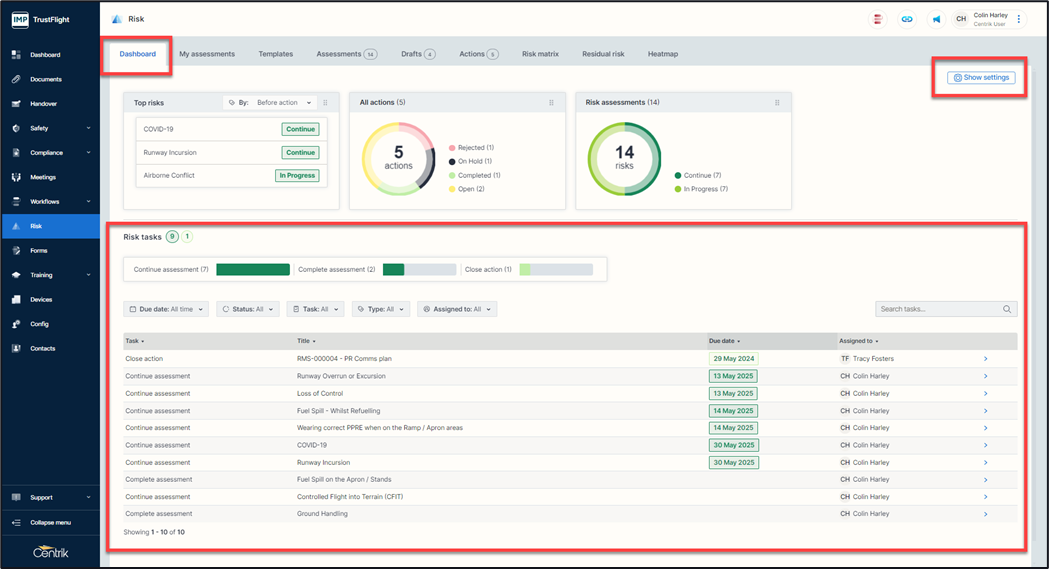

User filtering options via the ‘Show settings’ button and a filterable tasks list.

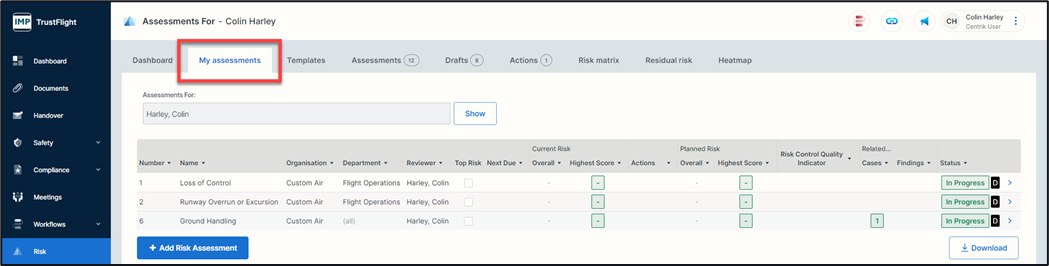

My assessments tab:
As the naming suggests this area is where any risk assessments that you have created, or you are reviewer of will be located.
If you have the necessary, access rights to create a risk assessment you can also perform that function via this tab through the ‘+ Add Risk Assessment’ button.

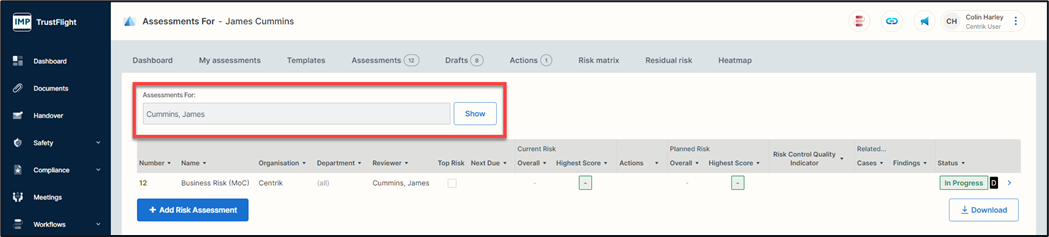

There is also a search area where you are able to search via an individual’s name any risk assessments they have created, or they are a reviewer of, entering their name in the Assessment For: box and clicking on the ‘Show’ button will display the results on the screen.

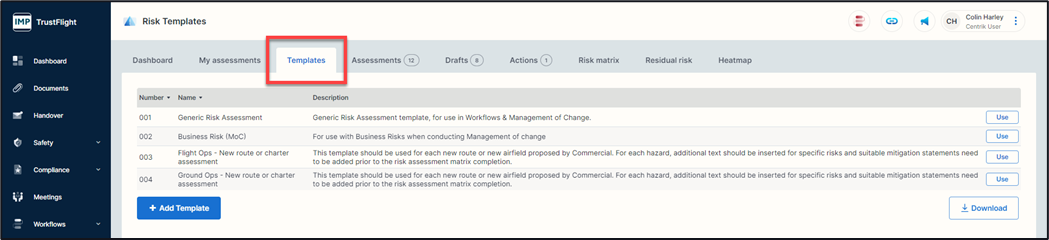

Templates tab:
The Templates area allows the ability to group several risk assessments into a method that is consistent in its approach and its content.
As an example, operating into a new aerodrome will have various risks associated with it, these will differ from aerodrome to aerodrome however most of the time the same risks will be present across all aerodromes.
What aircraft can the aerodrome accommodate? What is the Apron and stand configuration? What is the aerodrome infrastructure like and what facilities do they have for fuelling, aircraft cleaning, aircraft maintenance, etc.
In this scenario each identified area will have a risk assessment associated to it, the template function allows for these assessments to be grouped together and used again and again, additional risks can be added but the framework follows the same consistent process.

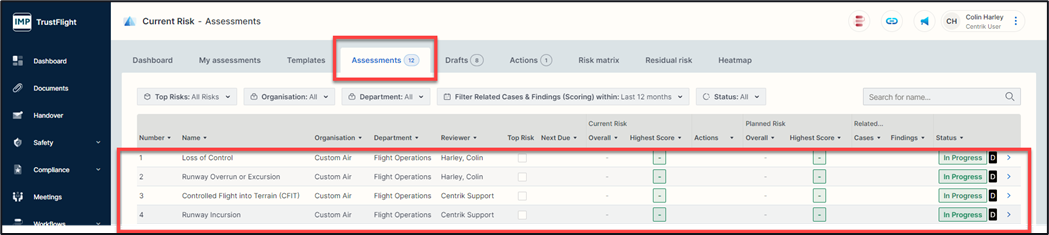

Assessments tab:

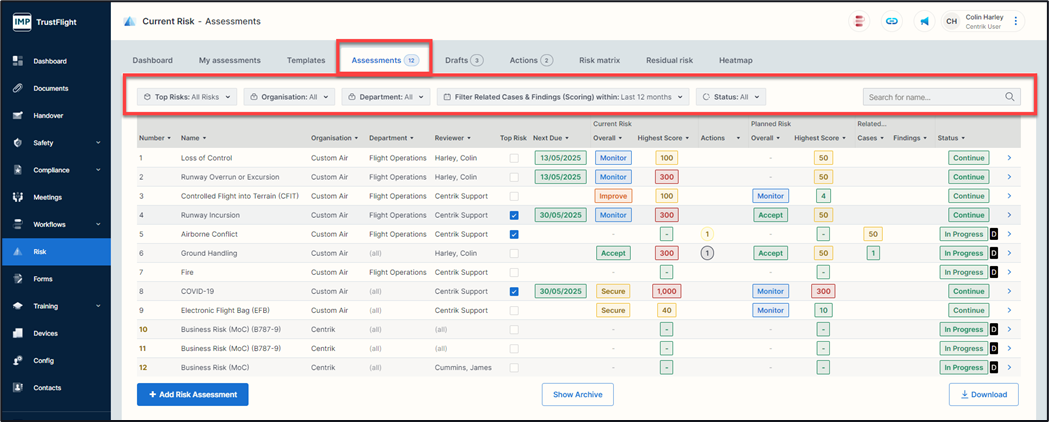

The main overview of where your risks are displayed and new risk assessments can be created (access right dependent), the number indicator on the assessments tab is the total number of draft and signed-off risks assessments, there are several filtering options alongside a search functionality on this page, other areas include an archive area and a download option.

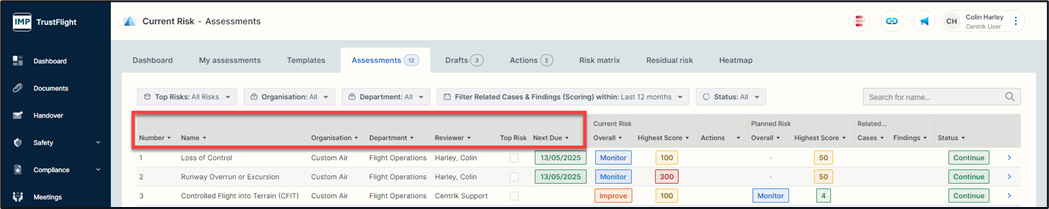

The assessment summary is broken down into different column headings.
Number – The number of the risk assessment, this number will alter the risk assessments position on the summary page
Name – The name or title of the risk assessment
Organisation – The organisation that the risk assessment belongs to
Department – The department where this risk assessment applies, if it applies to the entire organisation this will be displayed as (all)
Reviewer – The individual responsible for reviewing the risk assessment
Top Risk – The ability to flag a risk as a top risk to the organisation
Next Due – the date when the risk assessment is scheduled to be reviewed

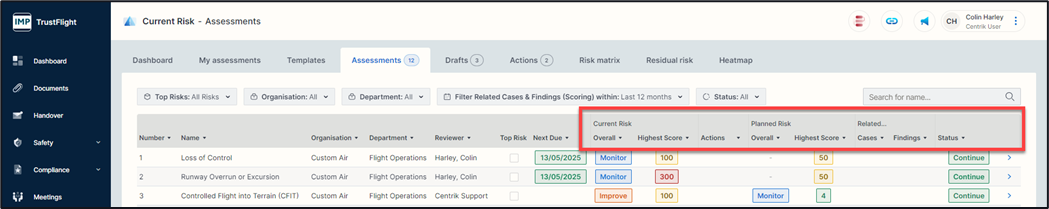

The remaining column headings are related to the Current Risk, Planned Risk and Related
Current Risk
Overall – The overall current assessment given to that particular risk assessment
Highest Score – The highest score given to the risk assessment after evaluating the risk
Actions – Any actions associated with this risk assessment (On hold, Open or Overdue)
Planned Risk
Overall – The overall assessment given to a particular risk assessment after mitigations
Highest Score – The highest score given to the risk assessment after mitigations
Related..
Cases – the ERC score of any related / linked safety cases to this risk assessment
Findings – The ERC score of any related / linked findings to this risk assessment
Status – Continue denotes a signed-off risk assessment, In Progress D denotes a draft one Until risk assessments are signed-off they are in a draft state, draft risk assessments are denoted with the letter D within the Assessment area and an In Progress state within the drafts tab.
Draft risk assessments within the Assessment tab, denoted by a letter D
Risk Assessment Overview:
Risk assessments can be accessed by clicking on the name of the risk assessment, risk assessments have three phases.
Setup – Where the overall risk assessments details are created
Evaluation – Where risks are captured and calculated
Decision – Where risk assessments are sign-off or stopped

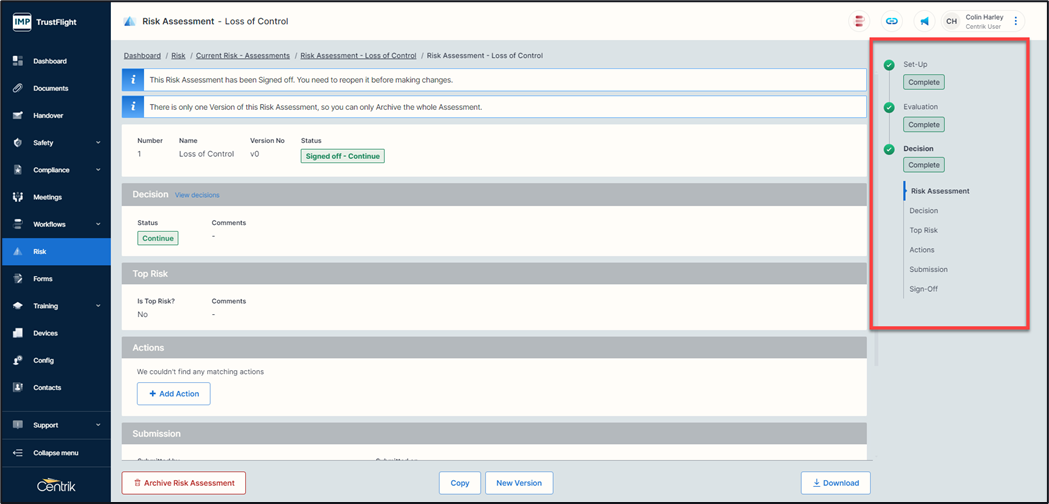

These phases can be seen visually displayed to the right of the screen, within each phase there are different sections required to complete the risk assessment. You can move through each phase by clicking on the phase title, you can move through each section by clicking on a section within a phase.
