When you have created and configured your classes of equipment, the types, and all associated checks you are ready to add in your specific pieces of equipment and start building a list of your assets.
1. Navigate back to the Equipment landing page

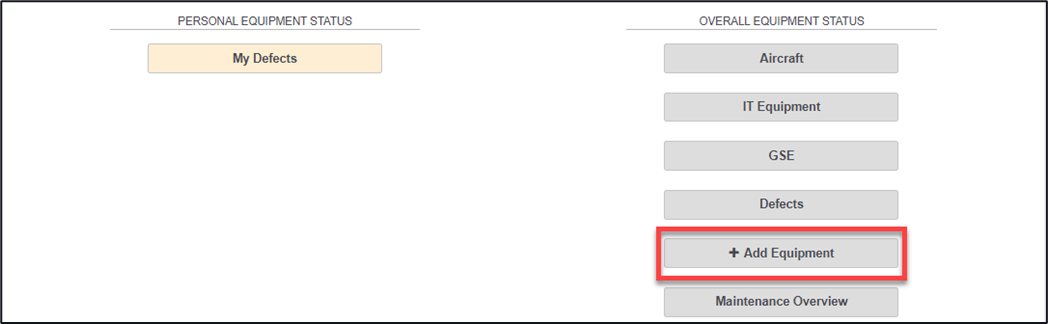

2. Click on the ‘+ Add equipment’ button
3. Enter in a Name for this piece of equipment in the available name area
4. Select the Class that this Equipment belongs to
5. Select the Type of Equipment from within that Class
Any data field areas created for this class, or type will be displayed upon selection of the class and type

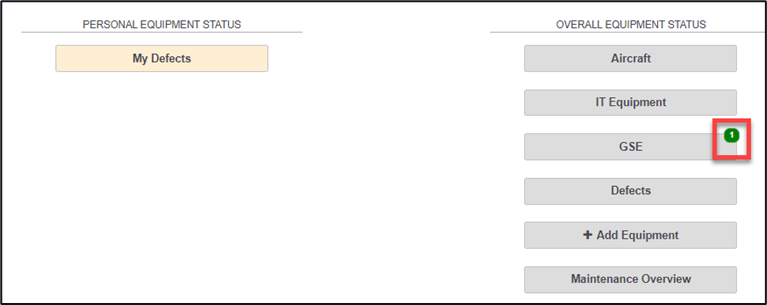

After adding in the equipment and navigating back to the equipment landing page a number indicator and colour is displayed against that class of equipment.

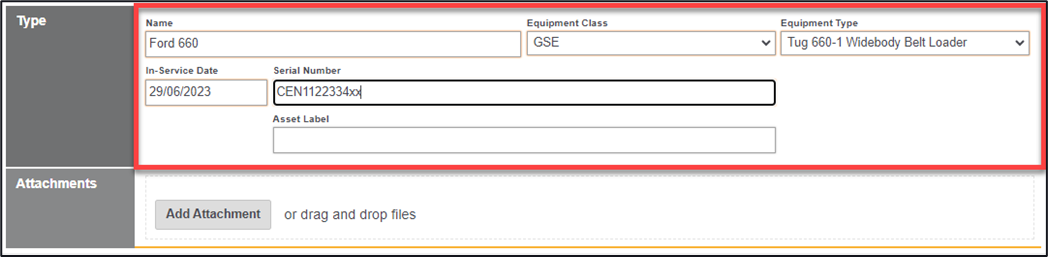

6. Complete any required data fields
7. Enter an In-Service Date, this date is important. It is this date that will track against any associated checks from the periodic checks area.
8. Click on the ‘Save’ button
The new equipment is added, the in-service date drives the date for any periodic checks
After adding in the equipment and navigating back to the equipment landing page a number indicator and colour is displayed against that class of equipment.

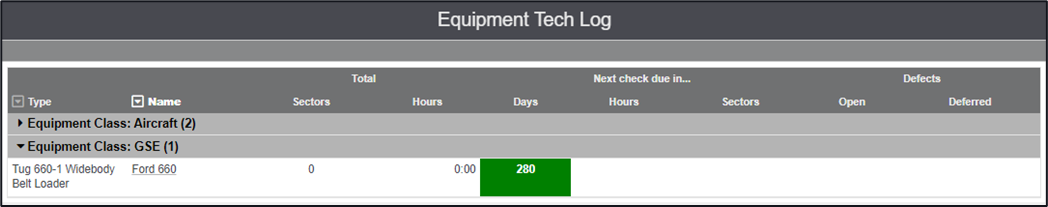

Clicking on the class button where the equipment sits will provide an equipment tech log overview.
Equipment Search

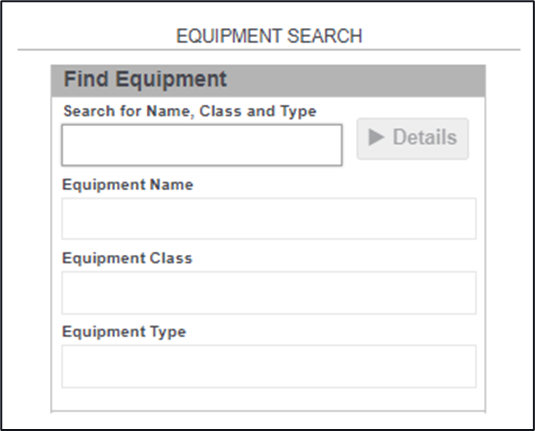

Once a Class, a Type and a specific piece of equipment has been added you are able to search for it from the equipment landing page.
1. Enter in the Name of the equipment, the box will display available equipment matching your text under the search area
2. Select from the dropdown, details of the equipment name, class, and type are displayed

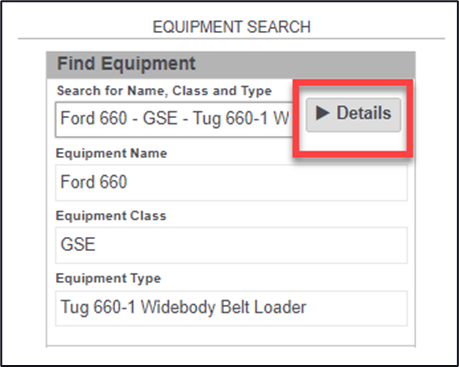

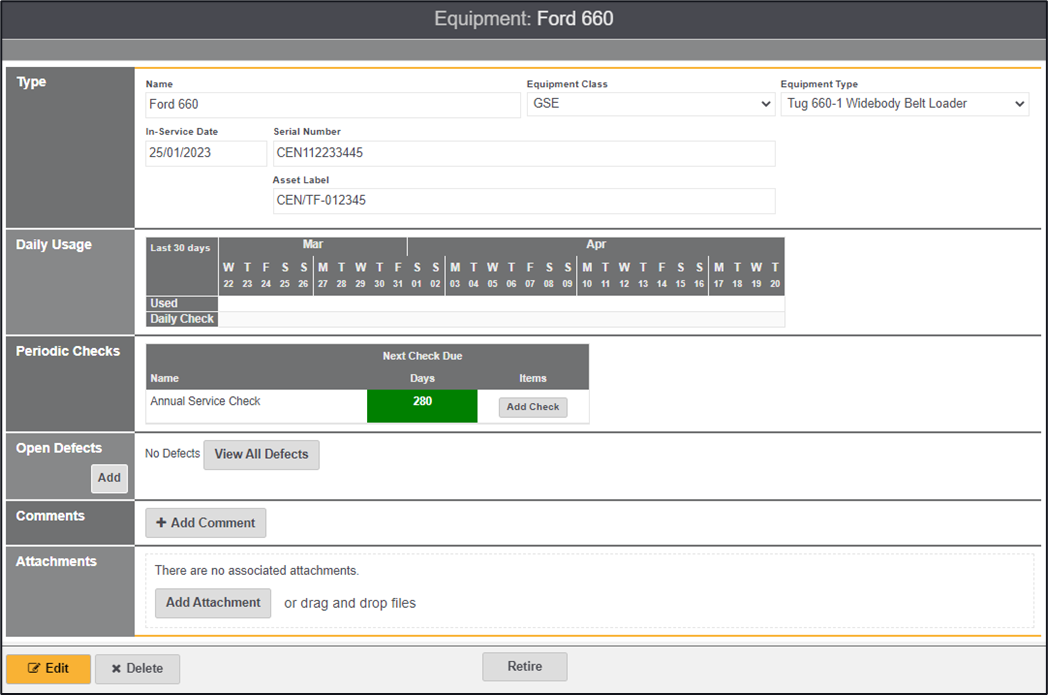

3. To look at that equipment in more details, click on the ‘Details’ button.
