Investigate Phase
The investigate phase allows you to document details of your investigation including any outcomes.
If not automatically enabled, clicking on the Investigate phase at the top of the page will open this area.
There are two areas to complete, investigation conducted and an investigation outcome.
1. Click on the Investigate phase at the top of the page
2. Clicking on the ‘Edit’ button allows you to enter information into the relevant areas
3. Clicking on the ‘Save’ button will secure these details.
4. Once completed clicking on the ‘Investigate Phase Complete’ will lock this phase.
Act Phase
If not automatically enabled, clicking on the Act phase at the top of the page will open this area.
As well as the ability to capture and create actions throughout Centrik you can also add any actions into the Act phase.

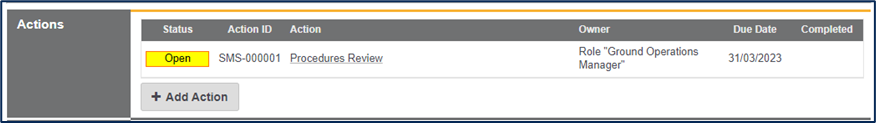

1. Clicking on the ‘+ Action’ button enables an actions screen to appear.
2. Complete the details required in the Actions area.
3. Click on ‘Save’ to create the action.
4. Clicking on the ‘Act Phase Complete’ button will lock this phase.
Monitor Phase
Similarly, to the Act phase you are able to monitor this safety case by creating associated actions.
If not automatically enabled, clicking on the Monitor phase at the top of the page will open this area.
1. Click on the Monitor phase at the top of the screen
2. Clicking on the ‘+ Add Action’ button will allow you to add an action
3. Once this phase has been completed clicking on the ‘Act Phase Complete’ button will lock this phase

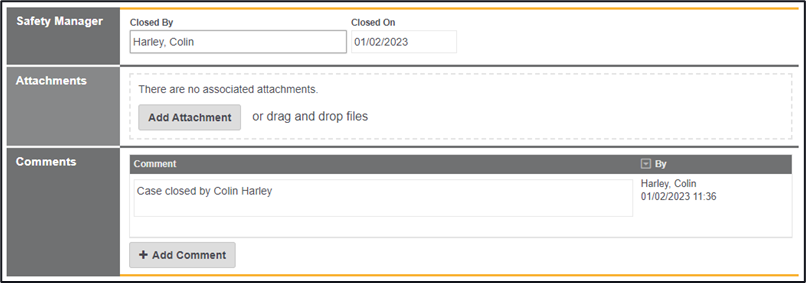

Close Phase - Case Closure
Closing a case can be configured to occur automatically after the classify phase has been completed or manually, these are configurable options of Centrik. Staged sign offs can also be configured.
After all mandatory phases or added phases have been completed you will be able to close this safety case.
1. Clicking on the close phase enables this phase, if set to automatic sign-off a closure box appears to confirm case closure. If set to manual sign-off there will be an ‘orange’ coloured ‘Close’ box.
2. Clicking on the ‘Close’ box will close the case.
When a safety case has progressed through its phases and closed you are able to view this from the safety case journey at the top of the page. All completed phases are denoted with a tick.
